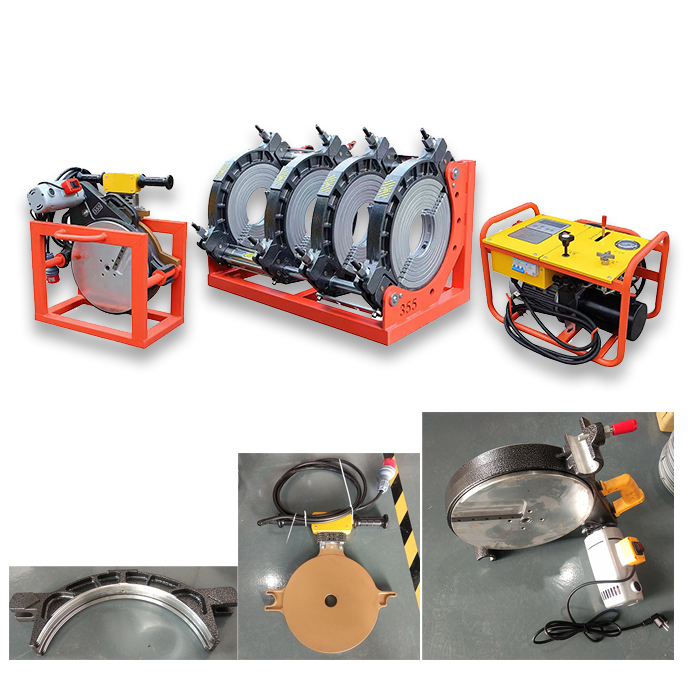

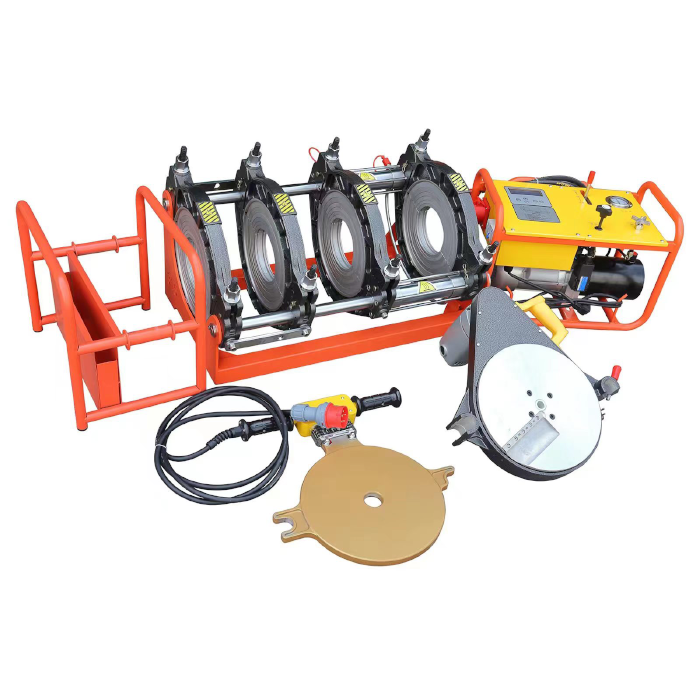

WSH355-90 Pipe butt fusion machine

Item No.: 00095
Welding ranges:90mm-355mm
(90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm-355mm)
Application: PE,PP and PVDF
Working voltage:220V ±10%,50Hz
Total power:5.21kW, including: milling cutter:1.36Kw, heating plate:3.1Kw, hydraulic unit:0.7
Description Warranty Info & FAQ
Description
ABOUT THE PIPE BUTT FUSION MACHINE
Butt fusion welding machine is specilized in welding of plastic pipes. This equipment is suitable for PE、PP、PVDF materials of pipes and other thermoplastic pipes and fittings. The quality of welding machine directly affects the welding quality.


Equipment Specifications WSD355-90
 Weldable Pipe Range 90mm-355mm
System Pressure Regulating Range 0~10MPa
Operating Voltage 220V  50HZ
Heating Plate Temperature 0~270℃
Surface Temperature Difference Of Heating Plate ±5℃
Cylinder Block Area 2000m㎡
Heating Plate Power 3.5KW

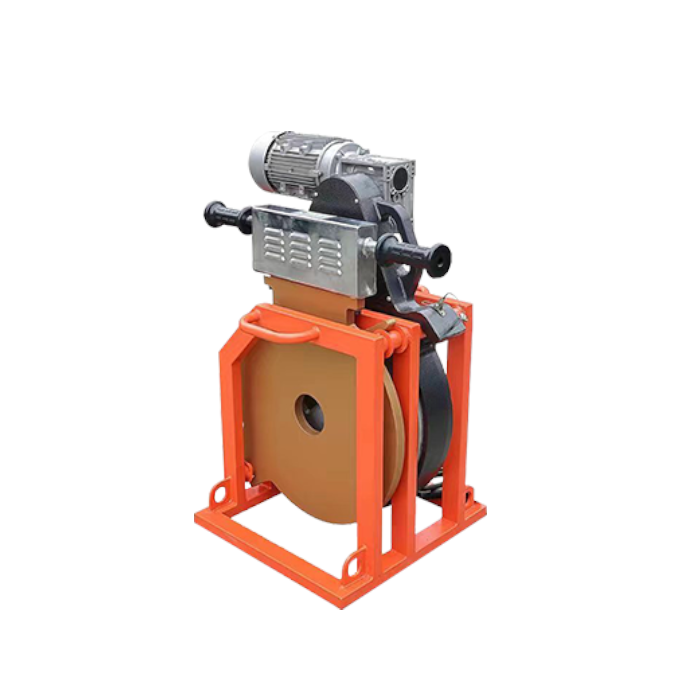

Mill Cutter Power 1.36KW

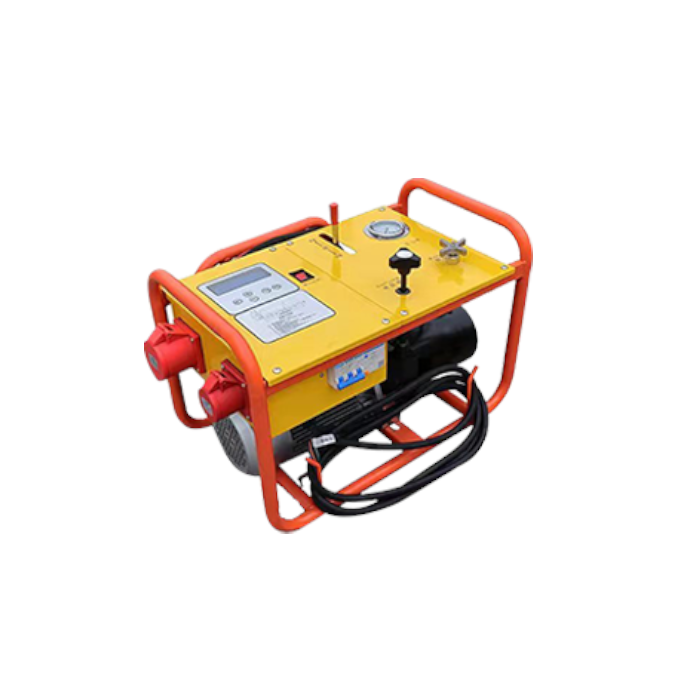

Hydraulic Unit Power 0.75KW
Total Power 5.61KW


Features:

1. Hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE/PP/PVDF. PP pipes and fittings for the transportation of gas, water and other fluids.

2. Changeable welding position enables to weld various fittings more easily.

3. All components of the hydraulic station comply with CE standards, and the control precision can reach 0.01%.

4. The frame is sturdy, and the main material is ZL104 aluminum, which is light in weight and high in strength.

5. Removable imported PTFE coated heating mould, heating plate thickened and twice coated with separate temperature control system, the temperature can be controlled well.

6. High power milling cutter, mirror cutter disk, strong motor, high con-centricity, smooth milling, strong with out slipping.

7. Separate two-channel timer records times in heating and cooling phases.

8. Digital high-accurate pressure gauge indicates clearer readings.

9. The main electrical apparatus elements are best of China, many are imported from abroad.

10. The performance of the whole machine is stable, accurate, reliable and easy to use. In pressure piping applications, providing excellent performance, the welded pipe acts as a whole pipe.























Optional parts:


Date logger Trolley
Crane Stud and end device for short flange

Warranty Info & FAQ
Two years warranty, lifelong service.

We supply two years warranty after you purchasing, lifelong service.

Provide on line video technique Teaching, technical support and solution by chief engineer.


FAQ



1. Can you supply OEM or ODM?

Answer: Yes, we do. We can manufacture the machines according to your exact requirements.



2. What is your delivery time?

Answer: Generally the delivery time is 3 - 5 days after down payment receiving. But the exact delivery time will depend on your quantity and your ordering time.



3. Can you also supply me related machines together?

Answer: Yes, we can. We have been in this field for many years and we can supply electrofusion machine, workshop fittings welding machine, and testing machine for welded pipe, PE/PPR materials etc. If you purchase other goods, you can also send your other goods to our factory for loading together.



4. How can I operate a Plastic pipe welding machine?

Answer: We supply operation manual and operation video for you. We also supply technical support for training.



Any other questions, contact me directly, please!

Tag: Butt fusion welding machine, Electrofusion machine, Workshop fittings welding machine, PE/PPR pipe and fittings, PE/PPR pipe and materials testing machine
